常规信息
- Unit (W × H × D mm) 440 × 192 × 472 (with antenna)
- Cabinet Size 440 × 192 × 422
- Net weight 33.3kg
- Packaging Dimensions (W × H × D mm) 600 × 379 × 540
- Packaging gross weight 38.7g
- Carton Color 1 Color (Material color: Brown Printing: Black)
- Panel Color Black / Marantz Champagne
- Front (Center) Pane Aluminum
- Back-shell Aluminum
- Front panel illumination 是 (All sides, Dimmer)
- Side cover Aluminum (Thickness: Max 15.8mm)
- Top cover (Centor) ventilation hole material 否
- Interior ilumination 否

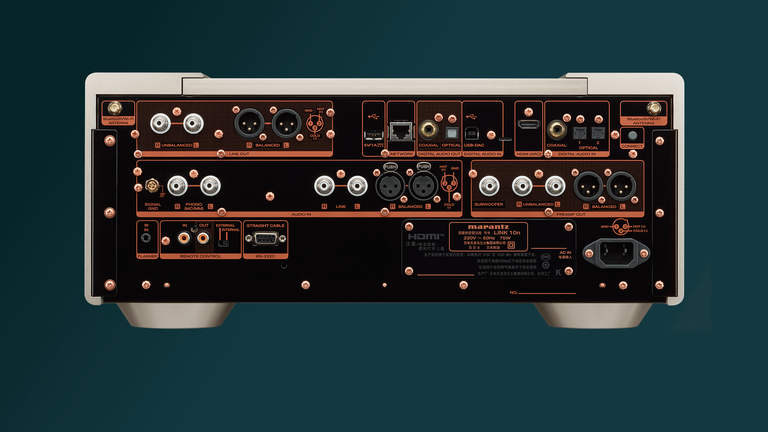

- Rear Panel Triple layer Copper-plated
- Chassis Material Copper-plated
- Bottom Layer / Bottom plate Copper-plated
- Volume Knob Solid aluminum (Bearing construction)
- Input Selector Solid aluminum (Bearing construction)
- Foot Solid aluminum with Copper
音频
- 频率响应 PCM 2Hz–50kHz (-3dB)
- Harmonic distortion PCM 0.0004%
- S/N PCM 0.0004%
- 动态范围 PCM 0.0004%
-
Line Output Leve
UNBALANCED : 2.0Vrms
BALANCED : 4.0Vrms - 耳机输出put Level 130mW / 32 ohms
- 频率响应 (analog input) 5 Hz–100 kHz (+0dB/-3 dB)
- Harmonic distortion (analog input) 0.001% (20Hz–20kHz)
-
S/N
PHONO (MC) : 76dB
HONO (MM) : 88dB
BALANCED : 122dB
LINE : 122dB -
Phono Input sensitivity
MM : 8mV
MC : 80mV -
Phono Input impedance
MC Low : 32 ohms
MC Mid : 100 ohms
MC High : 390 ohms
MM : 39 kohms -
Power Consumption
7W
Less than 0.3W (at Standby)
Less than 2W (at Network Control On: 蓝牙, Ethernet, Wi-Fi, USB)
音频功能
- Output Circuit New HDAM
- Power Transformer Toroidal
-
Pre Amplifier Circuit
New HDAM High Grade
Full balance -
Volume
Electric (MUSES 72323)
Variable gain - Bass / Treble / Mid / Balance Control 是 / 是 / 否 / 是
- Type of Tone Control Electric
- Headphone Circuit Discrete
- H/P Amp Gain Setting 是 (Low / Mid / High)
- H/P On.Off Setting H/P Off automatically, when in use
- DAC Circuit New MMM-Conversion
-
Dither
MMM-Stream
(Dither 1, 2, Off) -
噪声整形器
MMM-Stream
Balanced, Natural, Dynamic Music, Dymanic Voice) -
数字滤波器
MMM-Stream
Filter 1, 2 Selectable - Jitter Reducer 是
- DAC Master Clock Design (USB-DAC) 是
- Asynchronous mode (for USB-B input) 是
- Isolator (for USB-B input) 是 (Complete Isolation System Duo)
-
Fixed Analog Output (RCA)
Cinch × 1
Thick nickel plated independent terminals -
Pre / Variable Audio Output (RCA)
Cinch × 1
Thick nickel plated independent terminals - Fixed Balanced XLR Output 是 (1 Pair)
- Pre/ Variable Balanced XLR Output 是 (1 Pair)
-
RCA Input
Cinch × 1
Thick nickel plated independent terminals - Balanced XLR Input 是 (1 Pair)
-
Phono input
是 (MM / MC)
Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position)
Thick nickel plated independent terminals -
Optical input / output (Maximum Support)
2 / 1 (on/off switchable)
44.1 kHz - 192 kHz -
Coaxial input / output (Maximum Support)
1 / 1 (on/off switchable)
44.1 kHz - 192 kHz - HDMI input / output 否 / 是 (ARC)
- 耳机输出put 是 (Φ6.3 ×1)
- Subwoofer 是 with LP filter adjustable
使用便捷
- App HEOS app
- 远程控制ler 10 series universal 远程控制
- Front Panel 显示屏 New HD TFT Color 显示屏
-
显示屏 Language
N: (English/ German/ French/ Italian/ Dutch/ Spanish/ Swedish/ Polish/ Russian)
U: (English/ French/ Spanish)
K: ( Simplified Chinese/English)
F: (Japanese/ English) - Dimmer for 正面显示 20 steps
- Level meter 否
- Volume 显示屏 0 –100 / 0.5 step (defalut)-infinity/-99.5dB - 0dB / 0.5 step switchable
-
Voice Assistant
Apple Siri
Google Assistant - Control with App via Network Player (Use 远程控制 Bus) 否
- External Amp Control with App (Use 远程控制 Bus) 是
- Synchronously turn on amplifier and switch the input (Use 远程控制 Bus) 是
- HDMI CEC 是
- 远程控制ler RC004PMND
- Battery 是 (AAA ×2)
- Power Cord 是 (ALL region : Audio Grade : OFC)
-
Other
Stereo RCA Cable ×1
Remote connector cable ×1
CoA card
